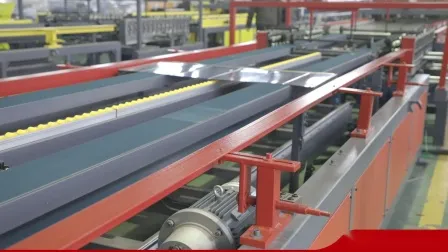

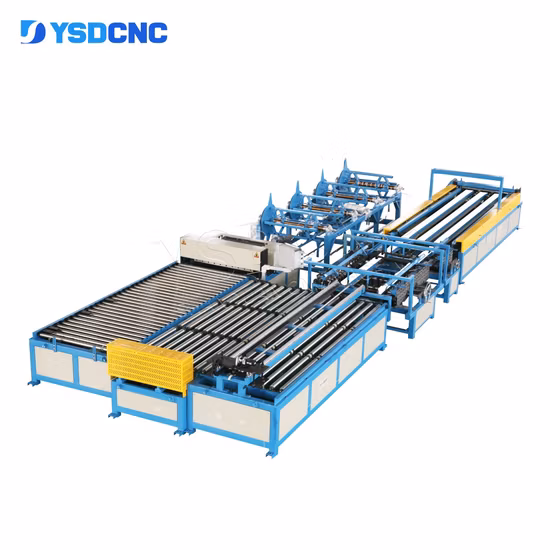

Rectangular Duct Making Auto Line Machine

Basic Info.

Product Description

I. Advantage of Products:
· The latest design can resolve the problems like getting struck, too many repairs form roll-shearing displacements lock machine.

· The three-line bending function can crimp narrow edges and stably process 0.5-1.2mm galvanized sheet to avoid wasting.

· Mechanical arm clutching, locating and transferring platform

· Displacement lock machine

· Line 3 host+ Single rack

II. Function:

· It's mainly for uncoiling, levelling, beading, punching, cutting. Because of its small space requirement and easy to install and operate the machine can upgrade to "super line 4".

III. Performance Features:

· All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.

· Under the material-saving mode of CNC system, machine can withdraw material automatically after finishing tasks.

· With production memory functions, the production orders can be tracked and checked.

IV. Main Import Configuration:

· · MITSUBISHI HMI Display And PLC

· · MITSUBISHI Frequency Converter

· · Japan NEMICON Inverter

· · Taiwan Hydromax Pump

· Taiwan High Temperature Resistant Tubing

V. Basic Configuration:

· One electric coil cradles, 2 material trays (5-7t each roll)

· One rack

· One host (line3 host)

· One mechanical arm clutching, locating and transferring platform

· One displacement type locking machine

· One set of computer controlling system
